Sun protection films

Efficient heat protection with maximum daylight

ClimaVision®cool

Our nanometre-thin coatings effectively block and reflect UV and infrared radiation and reduce the visible portion of sunlight and daylight to a specified intensity – for pleasant lighting conditions and high thermal protection.
The result: less heat gain, lower cooling requirements and noticeable energy savings. Ideal for existing buildings – for installation on the outside of windows.

Reference values

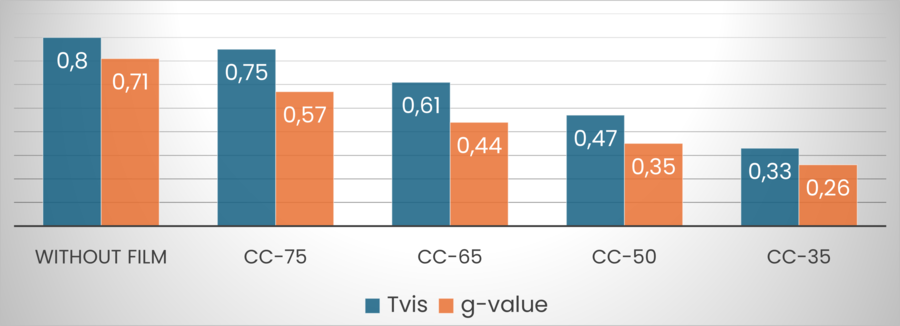

Graphic Light and solar heat input
Light and solar heat input

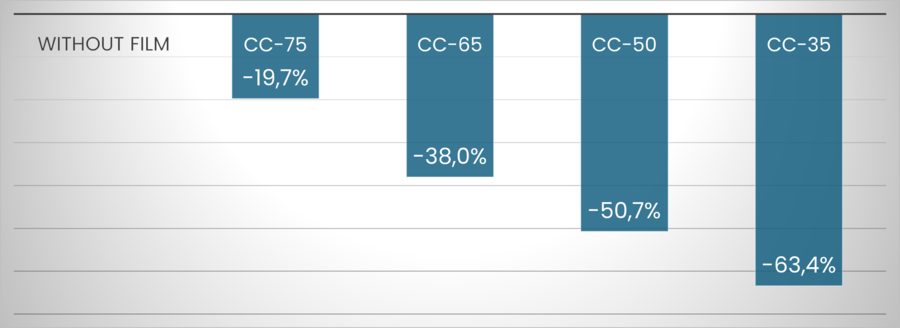

Graphic Reduction of solar heat gain
Reduction of solar heat gain

Product data

CC-75CC-65CC-50CC-35
Film widthup to 1,5mup to 1,5mup to 1,5mup to 1,5m
Film thickness75μm75μm75μm75μm
Film materialCoated PET film with adhesive layer and protective film
Technical data (EN 410)
Light transmission Tvis0,750,610,470,33
g value 0,570,440,350,26
Solar selectivity index1,321,391,341,27
Solar transmission 0,520,390,310,22
UV protection [300 - 380 nm] (%)>99%>99%>99%>99%
Reduction in solar energy input-19,7%-38,0%-50,7%-63,4%

Get a free consultation now

Whether you need product information, an energy analysis or measurements for existing windows, we will determine the potential for optimising energy, light and comfort in your project and provide you with personalised advice with no obligation.
