The smart glass solution
Existing buildings: The film is applied to the outside of the existing insulating glass. It is equipped with a durable scratch-resistant coating and a UV-blocking layer.
New buildings: The film is integrated into the multiple glazing directly by the insulating glass manufacturer. This ensures a seamless and permanently protected application.

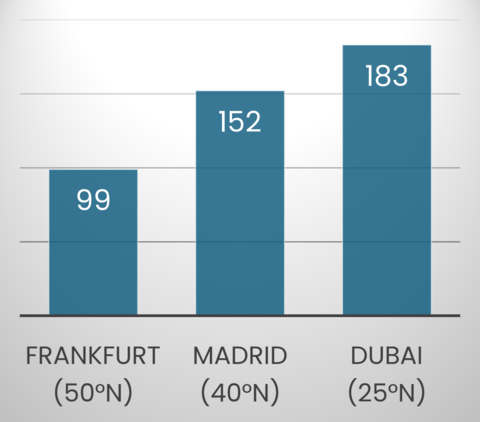

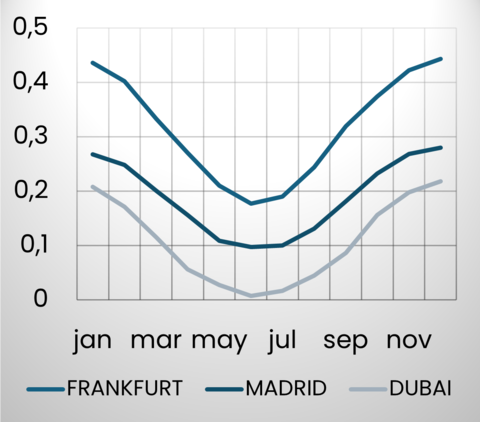

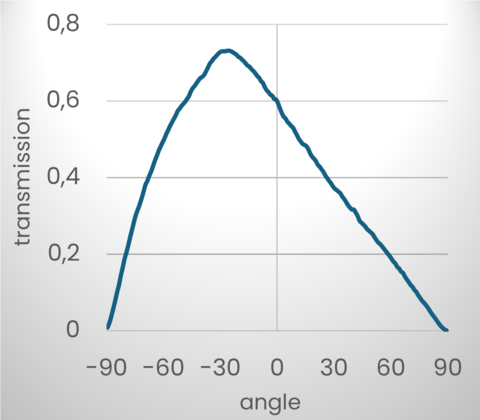

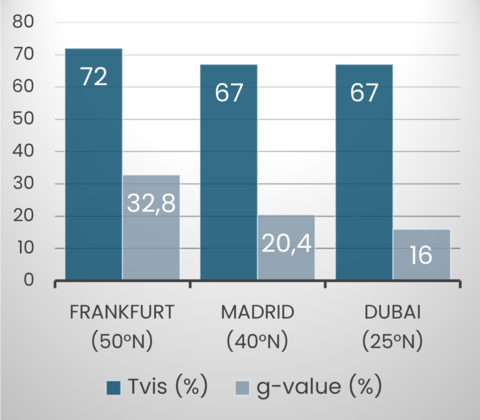

The diagrams show the angle-dependent transmission of a micro-lamella film with 20° inclined lamellae and transmission values from 0 to 0.75. This significantly reduces the heat input (g value) from direct sunlight – as demonstrated in Frankfurt, Madrid and Dubai – while maintaining high daylight incidence and selectivity factors above 3.0. The example of Frankfurt shows a self-regulating effect with g-values below 0.2 in summer and above 0.4 in winter.
