Low-e film

Retrofit thermal insulation

ClimaVision®low-e

Modern insulating glazing was only widely equipped with low-e coatings from the mid-1990s onwards. In these older existing buildings, the U-value and g-value can be significantly improved with our retrofittable low-e films – without having to replace the windows. The films reflect heat radiation back into the room, thereby noticeably reducing heat loss.

The films are applied to the inside, reflect heat radiation back into the room and thus noticeably reduce heat loss. The result: lower heating costs and a noticeably improved indoor climate.

The lower half of the window is fitted with our Low-e film, the upper half is not. The thermal image shows the reflection of a person's body heat when squatting: with the film, the heat stays in the room; without the film, it escapes outside into the cold area.

Reference values

Diagram

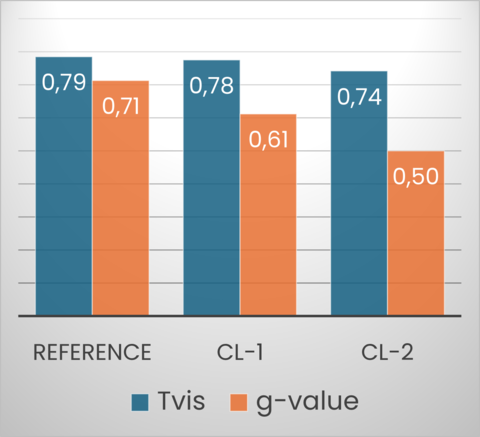

Light and solar heat input
Diagram

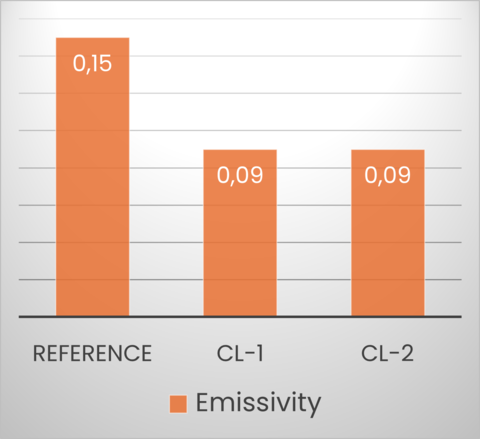

Emissivity
Diagram

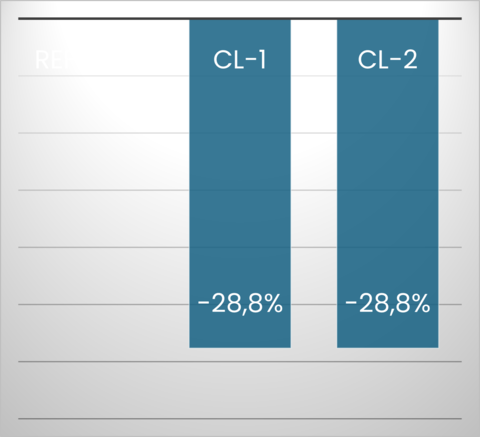

Reduction of heat loss
Diagram

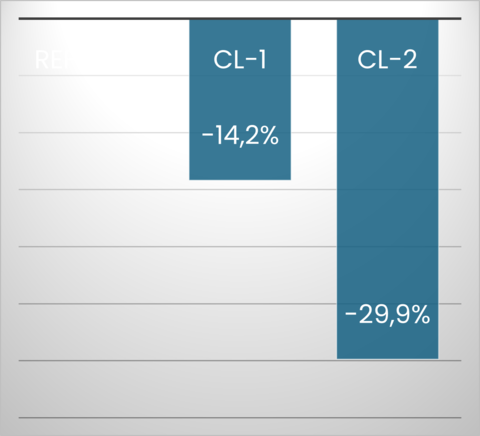

Reduction of heat input

Produktdata

CL-1CL-2
Film widthup to 1,5mup to 1,5m
Film thickness75μm75μm
Film materialcoated PET film with adhesive layer and protective film
Technical data (EN 410)
Light transmission Tvis0,780,74
g value 0,610,50
Solar selectivity index 1,271,48
Solar transmission0,440,37
UV protection [300 - 380 nm] (%) >99%>99%
Ug value (W/m² °C)1,921,92
Reduction in heat loss-28,8%-28,8%
Reduction in solar energy gain-14,2%-29,9%

Downloads

Get a free consultation now

Whether you need product information, an energy analysis or measurements for existing windows, we will determine the potential for optimising energy, light and comfort in your project and provide you with personalised advice with no obligation.
